Description -

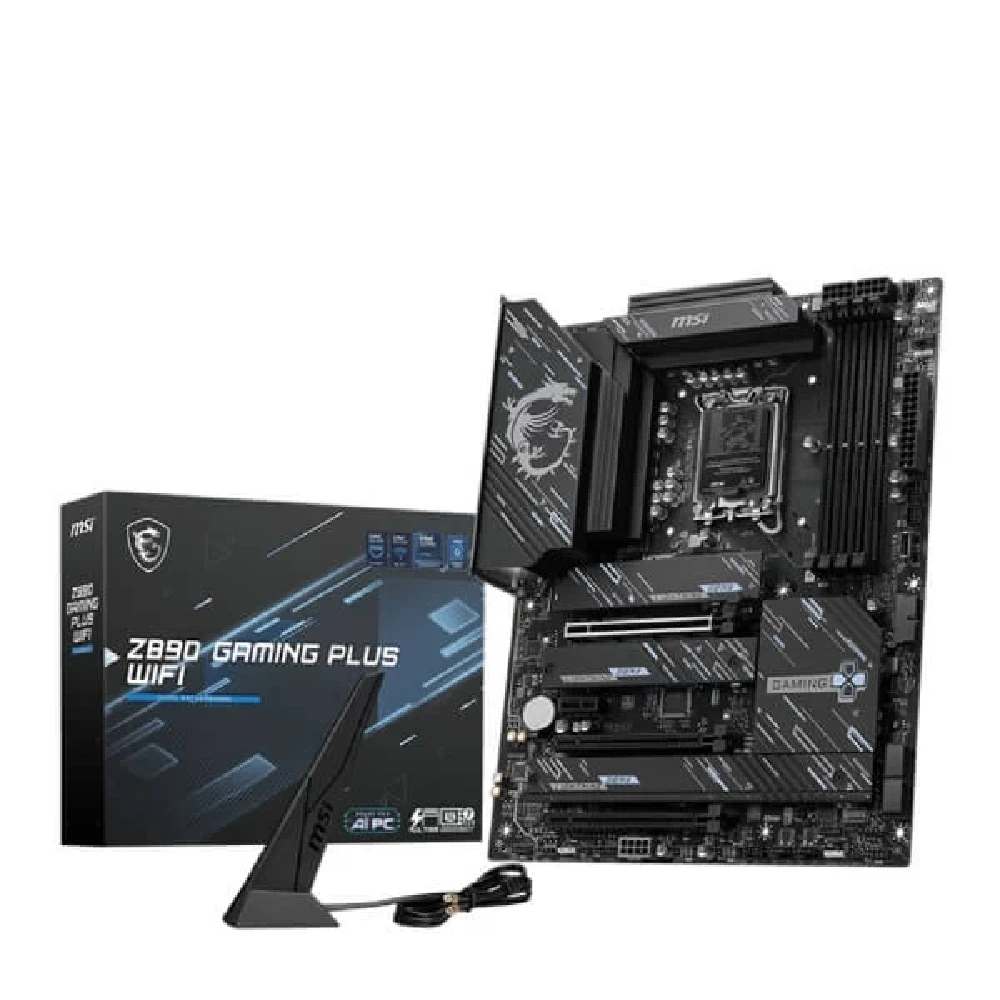

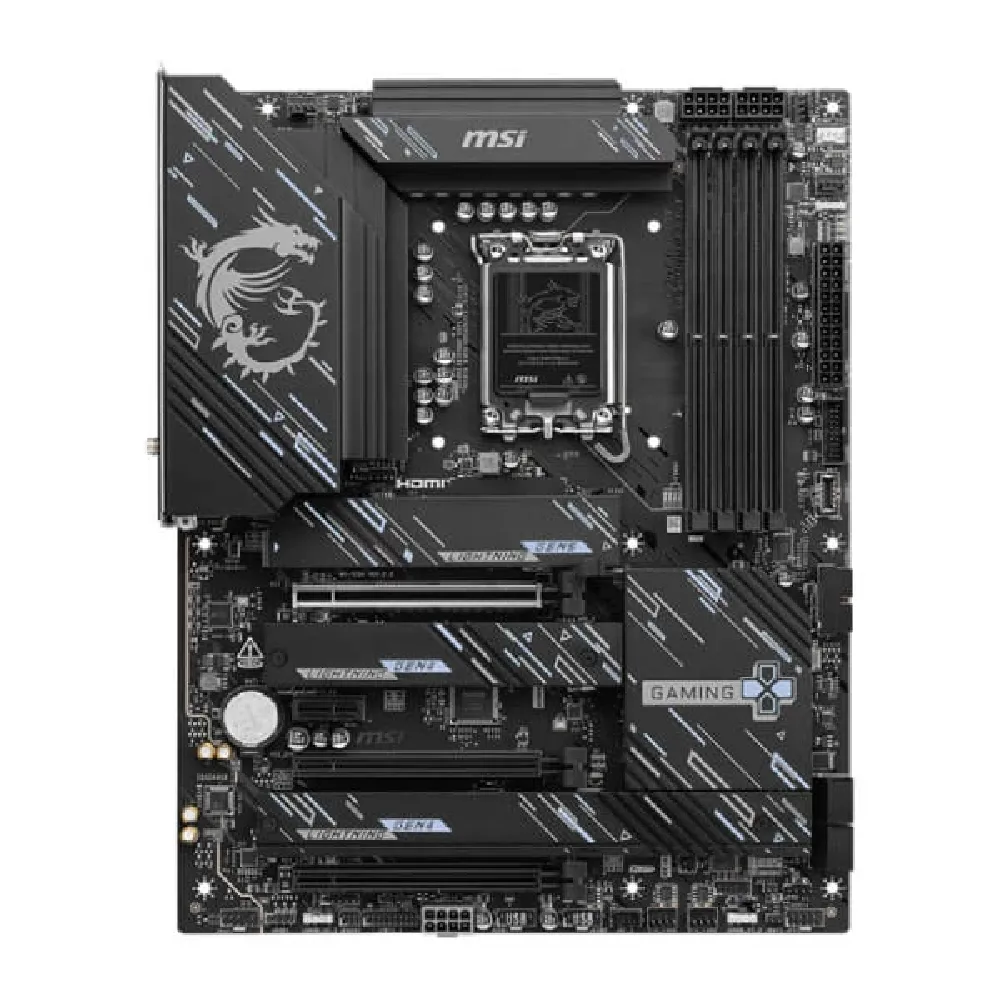

The MSI Z890 Gaming Plus WiFi Motherboard is a high-performance ATX motherboard designed for gamers and professionals, offering cutting-edge features and powerful compatibility.
Key Specifications:
✅ Model: Z890 GAMING PLUS WIFI
✅ Chipset: Intel Z890
✅ CPU Support: Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory:
- Slots: 4x DDR5 UDIMM
- Max Capacity: 256GB
- Speed Support:
- 9200 - 6400 MT/s (OC)
- 6400 - 4800 MT/s (JEDEC)
- Overclocking:
- 1DPC 1R: Up to 9200+ MT/s
- 1DPC 2R: Up to 7200+ MT/s
- 2DPC 1R & 2DPC 2R: Up to 4800+ MT/s
- Compatibility: Non-ECC, Unbuffered Memory, Intel® XMP 3.0, CUDIMM
Onboard Graphics:
- Ports:
- 1x HDMI™ 2.1 (4K 60Hz)
- 1x DisplayPort 1.4 (4K 60Hz)
- 1x Thunderbolt™ 4 (USB Type-C, 4K@120Hz / 8K@60Hz)
Expansion Slots:
- Slots:
- 3x PCI-E x16 (PCIe 5.0 / 4.0)
- 1x PCI-E x1
Audio:
- Codec: Realtek® ALC897
- Channels: 7.1-Channel High Definition Audio
Storage:
- M.2 Slots: 4x M.2 (PCIe 5.0 / 4.0)
- SATA Ports: 4x SATA 6G
- RAID Support: RAID 0, 1, 5, 10 for SATA and M.2 NVMe
Connectivity:
- Thunderbolt: 1x Thunderbolt 4 (40Gbps)
- USB Ports: USB 2.0, 5Gbps Type A, 10Gbps Type C
- LAN: Intel Killer E5000 5Gbps
Wireless & Bluetooth:
- Wi-Fi: Intel® Killer™ BE1750x Wi-Fi 7 (Up to 5.8Gbps)
- Bluetooth: Bluetooth® 5.4
Internal I/O:
- Multiple power connectors, fan connectors, RGB LED connectors, TPM pin header
Form Factor & OS Support:
- Size: ATX (243.84mm x 304.8mm)
- OS Support: Windows 11 64-bit
Warranty:
Box Contents:
- Quick Installation Guide
- SATA Cables
- EZ M.2 Clips
- EZ Wi-Fi Antenna
Note: Features and specifications are subject to change without notice.
The MSI Z890 Gaming Plus WiFi Motherboard delivers top-tier performance, robust connectivity, and advanced gaming features, making it an excellent choice for high-end gaming and professional applications.
