Description –

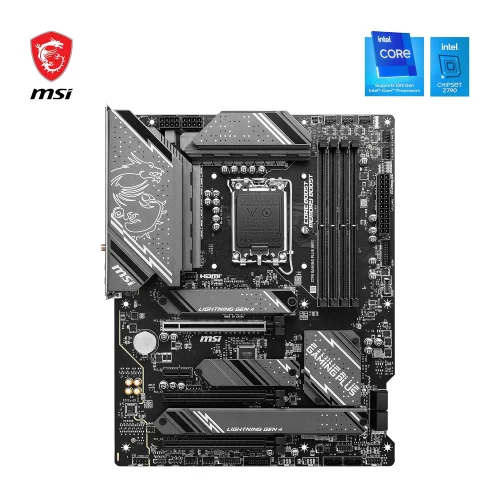

MSI Z790 GAMING PLUS WiFi Motherboard

Model: Z790 GAMING PLUS WiFi
Chipset: Intel Z790
CPU Compatibility: Supports Intel® Core™ 14th, 13th, and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor, and Intel Processor 300(T)
Socket: LGA 1700

Memory:

• 4x DDR5 DIMM slots
• Maximum Capacity: 192GB
• Speed: Up to 7200 MHz (OC)
• Supports Intel® XMP 3.0 OC and Dual-Channel Mode

Graphics:

• Video Outputs:
  • 1x HDMI™ 2.1 (4K @ 60Hz)
  • 1x DisplayPort 1.4 (4K @ 60Hz)

Expansion Slots:

• 3x PCIe x16 slots (PCIe 5.0 support)
• 1x PCIe x1 slot

Storage:

• 4x M.2 slots (PCIe 4.0 & SATA support)
• 6x SATA 6Gb/s ports
• Supports RAID 0, 1, 5, 10 for SATA & NVMe

USB Connectivity:

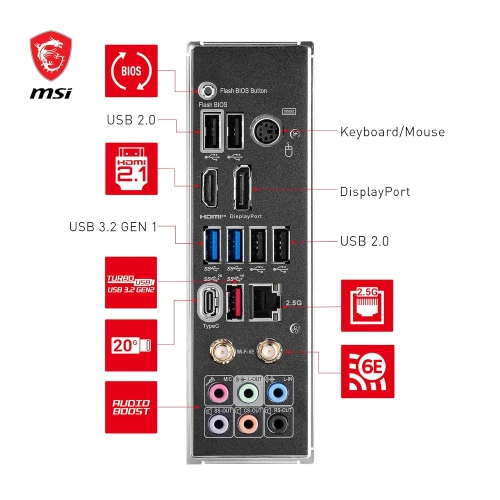

• Rear Ports:
  • 4x USB 2.0
  • 2x USB 3.2 Gen 1 Type-A
  • 1x USB 3.2 Gen 2 Type-A
  • 1x USB 3.2 Gen 2 Type-C
• Front Ports:
  • 4x USB 2.0
  • 4x USB 3.2 Gen 1 Type-A
  • 1x USB 3.2 Gen 2 Type-C

Networking:

• Intel® 2.5Gbps LAN
• Wi-Fi: Intel® Wi-Fi 6E (up to 2.4Gbps)
• Bluetooth: Bluetooth® 5.3

Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Internal I/O & Features:

• Multiple connectors for power, fans, RGB, and USB
• 4x EZ Debug LED for troubleshooting
• Flash BIOS Button

Form Factor & OS Compatibility:

• Size: ATX (243.84mm x 304.8mm)
• OS Support: Windows® 10/11 (64-bit)

Warranty:

• 3 Years

The MSI Z790 GAMING PLUS WiFi Motherboard is built for high-performance gaming and content creation, offering next-gen DDR5 support, PCIe 5.0, advanced cooling, and robust connectivity. Ideal for gamers, overclockers, and power users.

.
