Description –

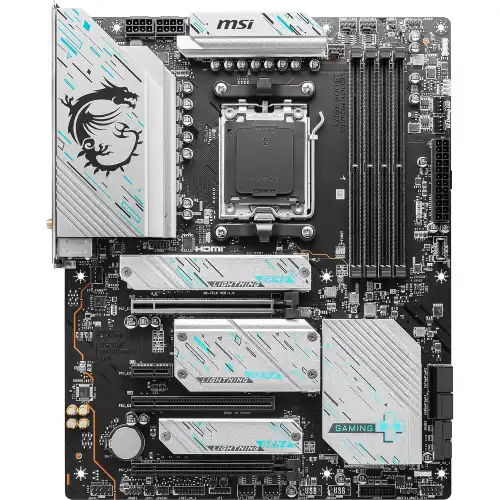

MSI X670E GAMING PLUS WIFI Motherboard

Model Number: X670E GAMING PLUS WIFI
Chipset: AMD X670
CPU Compatibility: Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors (Socket AM5)

Memory:

• Slots: 4x DDR5 UDIMM
• Maximum Capacity: 192GB
• Supported Speeds:
  • 1DPC 1R: Up to 7800+ MHz (OC)
  • 1DPC 2R: Up to 6400+ MHz
  • 2DPC 1R: Up to 6400+ MHz
  • 2DPC 2R: Up to 5400+ MHz
• Dual-Channel Mode: Supported
• Features: Non-ECC, unbuffered memory, AMD EXPO™ compatibility

Graphics Support:

• Ports:
  • 1x HDMI™ 2.1 (4K @ 60Hz)
  • 1x DisplayPort 1.4 (4K @ 60Hz)

Expansion Slots:

• PCIe Slots:
  • 3x PCIe x16 (varied configurations based on processor)
  • 1x PCIe x1

Storage Options:

• M.2 Slots: 4x (including PCIe 5.0 x4 support)
• SATA Ports: 4x SATA 6Gb/s
• RAID Support:
  • SATA: RAID 0, 1, 10
  • M.2 NVMe: RAID 0, 1

Connectivity & Networking:

• USB Ports: Multiple USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 (including Type-C)
• LAN: Realtek® RTL8125BG 2.5Gbps Ethernet
• Wireless: AMD Wi-Fi 6E & Bluetooth® 5.3

Audio:

• Chipset: Realtek® ALC897 Codec
• Channels: 7.1-Channel High Definition Audio

Form Factor & Compatibility:

• Size: ATX (243.84mm x 304.8mm)
• Operating Systems Supported: Windows® 11 (64-bit), Windows® 10 (64-bit)
• Warranty: 3 Years

The MSI X670E GAMING PLUS WIFI motherboard delivers powerful performance, high-speed connectivity, and advanced cooling, making it an excellent choice for gamers and PC enthusiasts.
