Description –

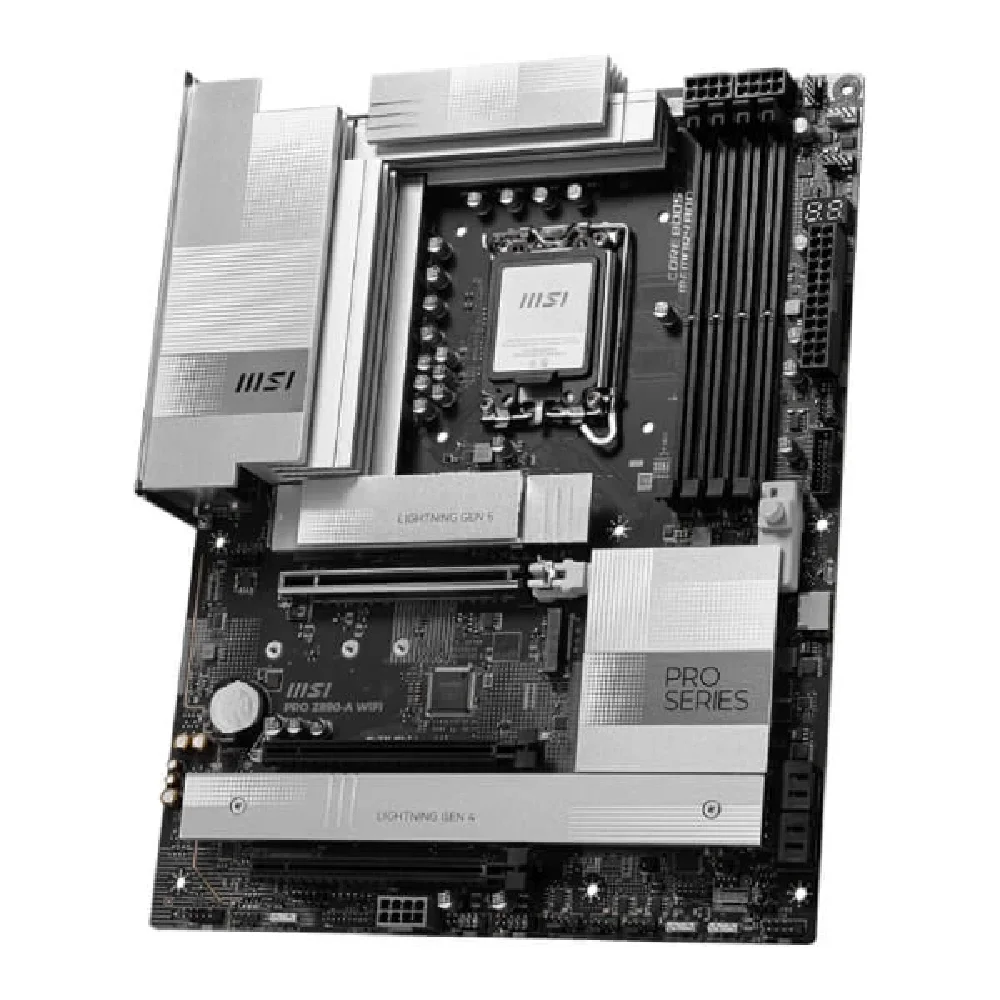

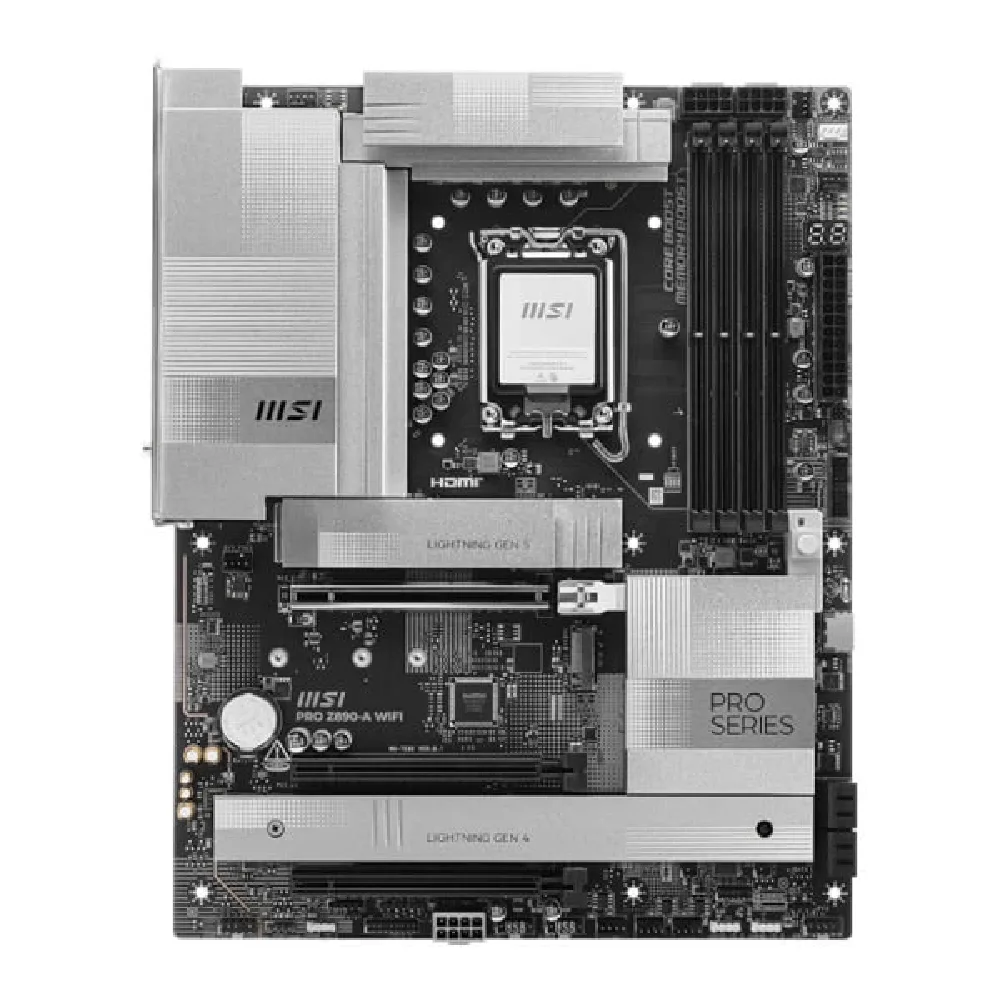

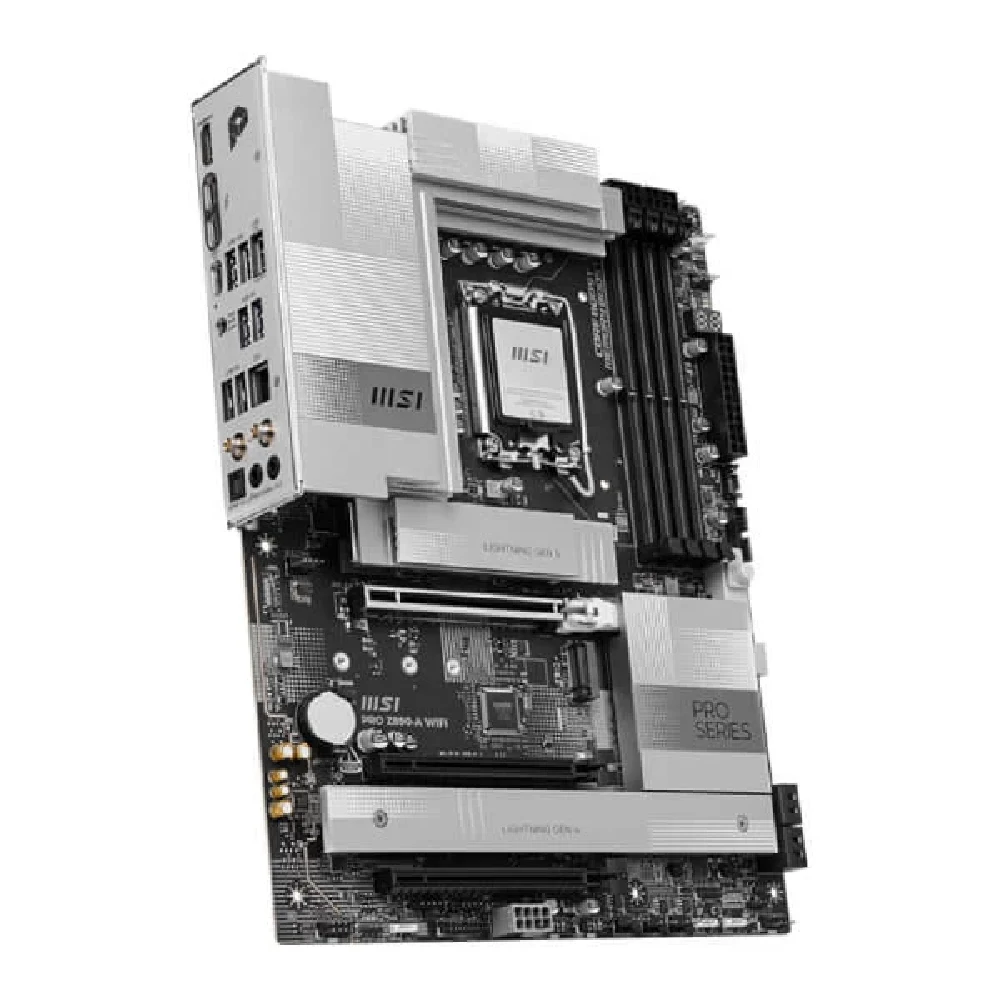

MSI Pro Z890-A WiFi Motherboard

Model: PRO Z890-A WiFi
Chipset: Intel Z890
CPU Compatibility: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory

• Slots: 4x DDR5 UDIMM
• Maximum Capacity: 256GB
• Supported Speeds:
  • Overclocking: 9200 – 6400 MT/s (OC) / 6400 – 4800 MT/s (JEDEC)
  • Max Speeds:
    • 1DPC 1R: Up to 9200+ MT/s
    • 1DPC 2R: Up to 7200+ MT/s
    • 2DPC 1R/2R: Up to 4800+ MT/s
• Additional Features:
  • Intel® POR Speed & JEDEC Speed
  • Intel® XMP 3.0 for advanced overclocking
  • Dual-Channel mode, Non-ECC, Unbuffered memory
  • CUDIMM support
  • Single-sided latch DIMM slots

Onboard Graphics

• HDMI: 1x HDMI 2.1 (4K @ 120Hz)
• DisplayPort (Type-C): 2x Thunderbolt™ 4 (DisplayPort 2.1, 4K @ 120Hz / 8K @ 60Hz)

Expansion Slots

• PCIe x16 Slots: 3x
  • PCI_E1: Gen 5.0 (up to x16 from CPU)
  • PCI_E2/E3: Gen 4.0 (up to x4 from Chipset)

Audio

• Chipset: Realtek® ALC1220P
• Channels: 7.1-Channel High Definition Audio with S/PDIF output

Storage

• M.2 Slots: 4x (various configurations and speeds)
• SATA Ports: 4x SATA 6G
• RAID Support: RAID 0, 1, 5, and 10 (SATA & NVMe)

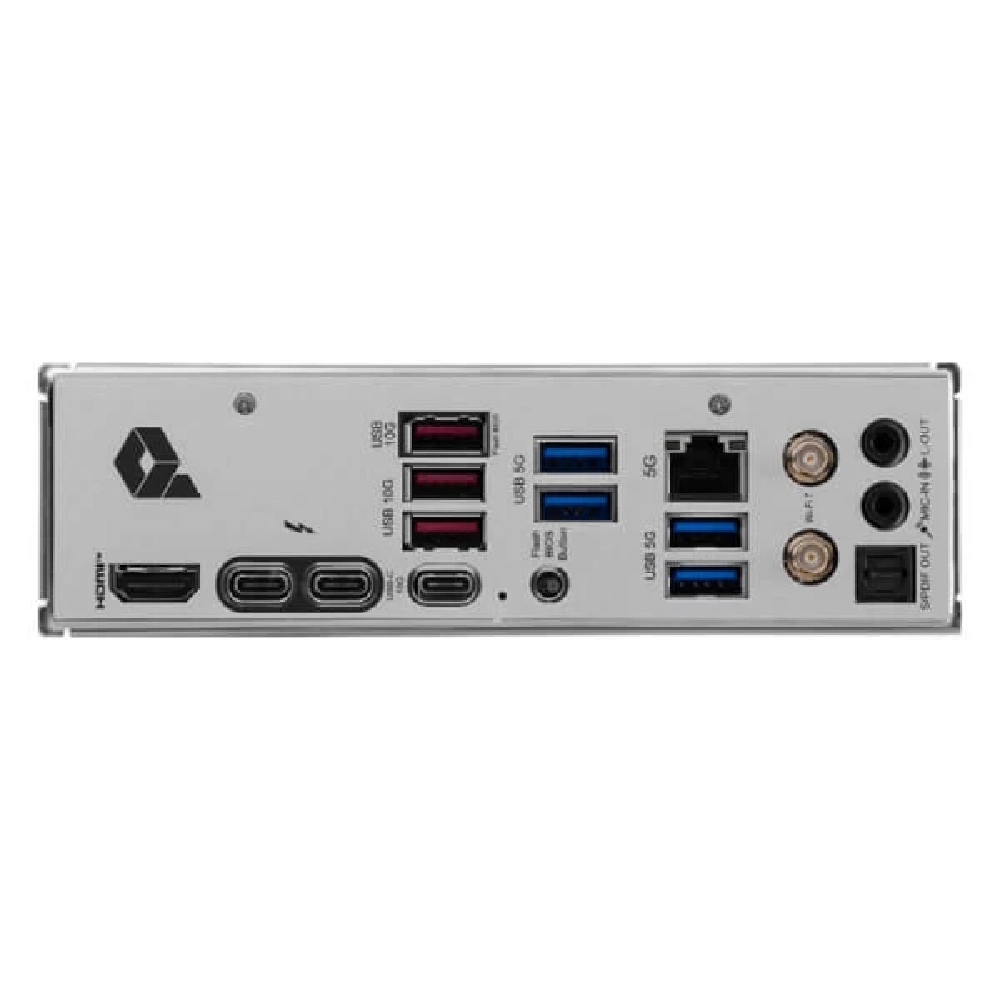

Thunderbolt & USB Ports

• Thunderbolt: 2x Thunderbolt™ 4 (up to 40Gbps)
• USB Ports:
  • Multiple USB 2.0, USB 3.2, and USB Type-C connections
  • USB 20Gbps Type-C with USB PD 27W fast charging

Networking

• LAN: Realtek® 8126 5Gbps Ethernet
• Wireless: Intel® Wi-Fi 7 (up to 5.8Gbps)
• Bluetooth: Bluetooth® 5.4

Internal I/O & Features

• Power, cooling, RGB, and USB connectors
• LED Features:
  • 4x EZ Debug LED
  • 1x EZ Digit Debug LED

Additional Information

• Form Factor: ATX (243.84mm x 304.8mm)
• Operating System: Windows 11 64-bit support
• Warranty: 3 Years

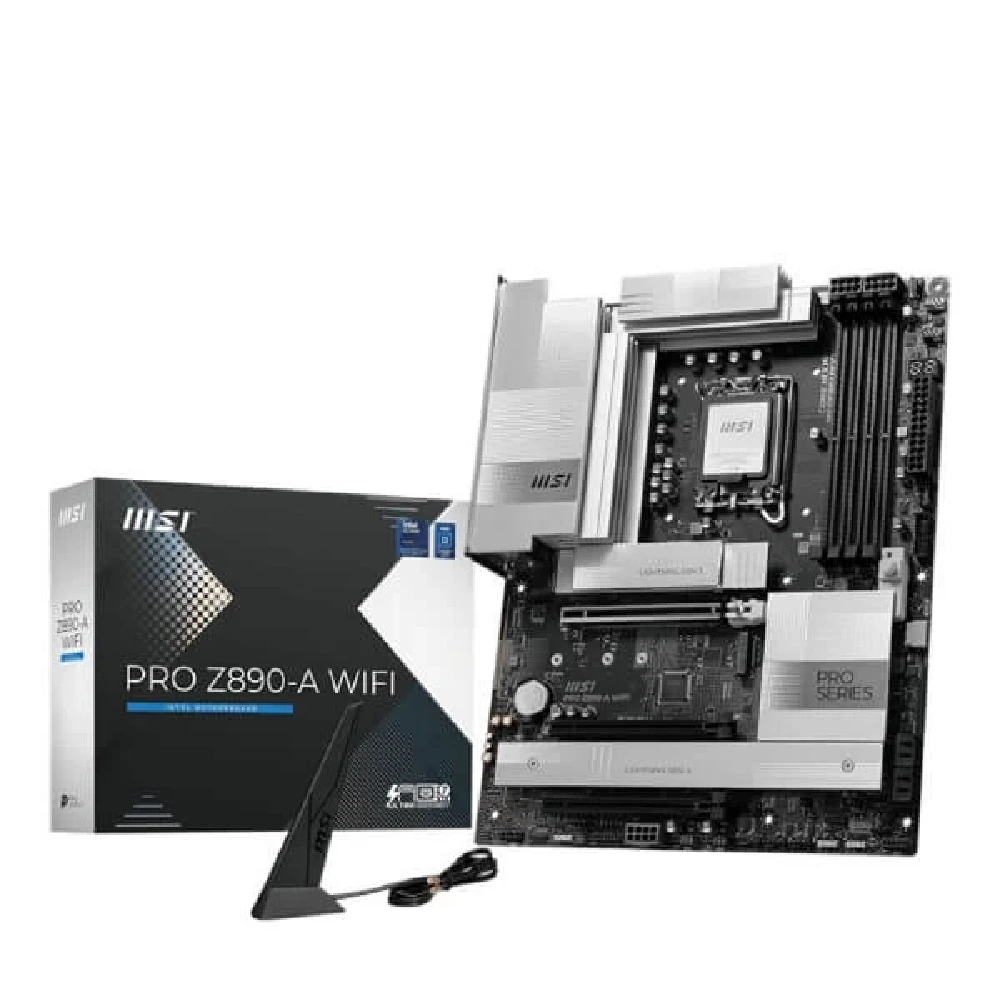

• Box Contents: Quick installation guide, SATA cables, EZ M.2 clips, Wi-Fi antenna

Note: Features, specifications, and pricing are subject to change without notice.

The MSI Pro Z890-A WiFi Motherboard delivers exceptional performance, high-speed connectivity, and advanced overclocking features, making it an excellent choice for gamers and professionals alike.
