Description –

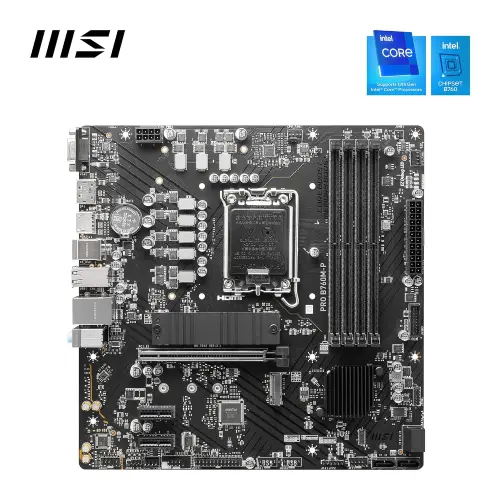

MSI Pro B760M-P Motherboard

Chipset

• Intel B760

CPU Support

• Compatible with Intel® Core™ 14th, 13th, and 12th Gen processors
• Supports Intel® Pentium® Gold and Celeron® processors
• LGA 1700 socket

Memory

• 4x DDR5 DIMM slots, up to 192GB
• Memory speeds up to 6800+ MHz (OC)
• Intel® XMP 3.0 OC and Dual-Channel mode support
• Non-ECC, unbuffered memory

Onboard Graphics (Requires supported CPU)

• HDMI™: 4K @ 30Hz
• DisplayPort: 4K @ 60Hz
• VGA: Up to 2048×1536 @ 50Hz

Expansion Slots

• 1x PCI-E x16 (PCIe 4.0)
• 2x PCI-E x1

Storage

• 2x M.2 Slots: Supports PCIe 4.0 x4 & SATA
• 4x SATA 6Gbps ports
• RAID Support: RAID 0, 1, 5, 10 for SATA

USB Ports

• Rear Panel:
  • 4x USB 2.0
  • 1x USB 3.2 Gen1 Type-A
  • 1x USB 3.2 Gen2 Type-C
• Front Panel:
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type-A

Networking

• LAN: Realtek® RTL8111H Gigabit Ethernet

Audio

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Internal I/O

• Multiple power, fan, audio, and USB headers
• 4x EZ Debug LED

Back Panel Ports

• HDMI™, DisplayPort, VGA
• USB 2.0, USB 3.2 (Type-A & Type-C)
• Gigabit LAN, audio connectors

Operating System Support

• Windows® 10/11 (64-bit)

Form Factor

• Micro-ATX (243.84mm x 243.84mm)

Warranty

• 3 Years

The MSI Pro B760M-P Motherboard delivers reliable performance, robust connectivity, and support for high-speed DDR5 memory, making it an excellent choice for professionals and gamers alike.
