Description –

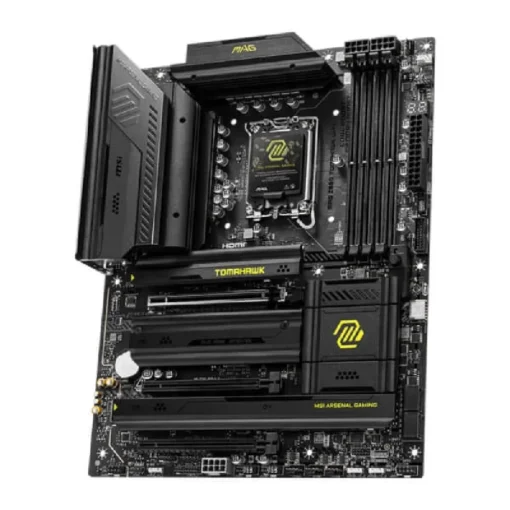

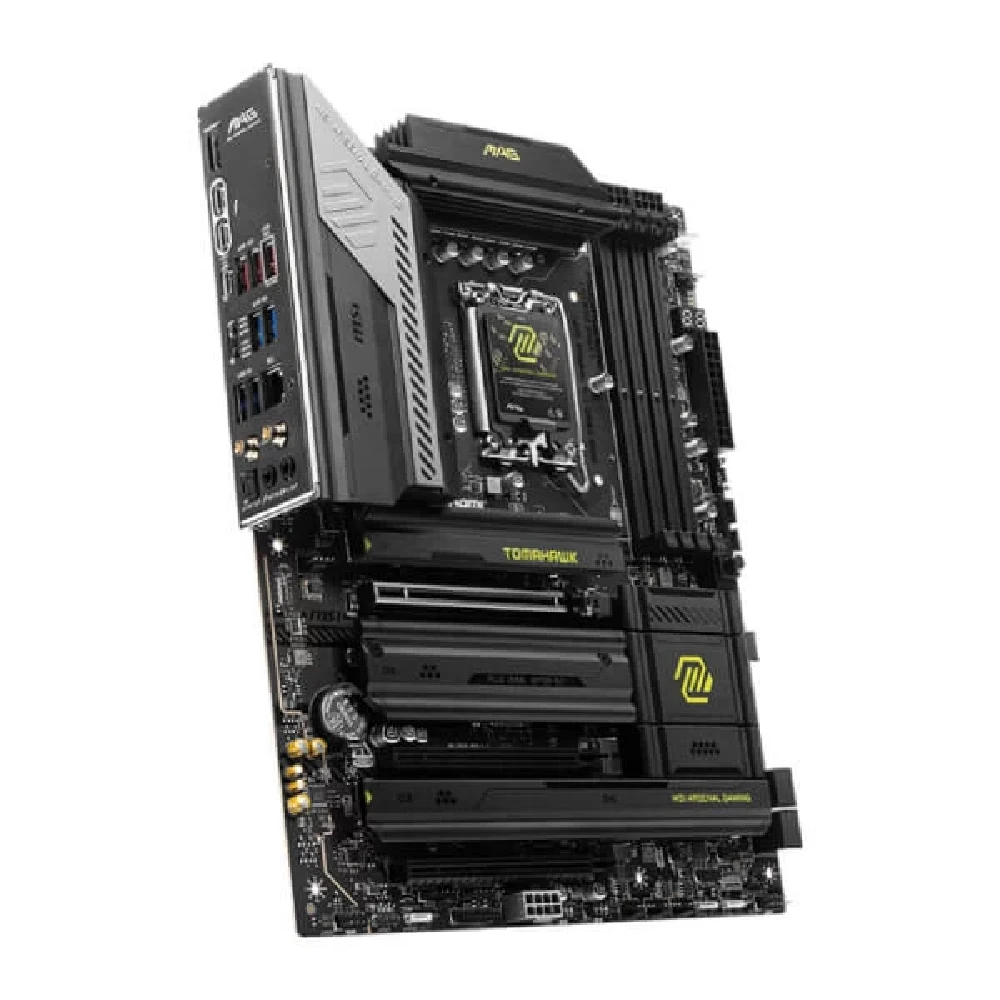

MSI MAG Z890 Tomahawk WiFi Motherboard

Model: MAG Z890 TOMAHAWK WIFI
Chipset: Intel Z890
CPU Compatibility: Supports Intel Core Ultra Processors (Series 2), LGA 1851

Memory

• 4x DDR5 UDIMM slots, up to 256GB
• Speeds: 9200-6400 MT/s (OC), 6400-4800 MT/s (JEDEC)
• Supports Intel XMP 3.0, Dual-Channel

Onboard Graphics

• 1x HDMI 2.1 (4K@120Hz)
• 2x Thunderbolt 4 Type-C (4K@120Hz / 8K@60Hz)

Expansion Slots

• 3x PCIe x16 slots (1x PCIe 5.0, 2x PCIe 4.0)

Audio

• Realtek ALC1220P Codec, 7.1-Channel HD Audio

Storage

• 4x M.2 slots (Supports PCIe 5.0/4.0)
• 4x SATA 6Gb/s ports
• RAID 0, 1, 5, 10 support for SATA & NVMe

Connectivity

• Thunderbolt: 2x Thunderbolt 4 ports (40Gbps)
• USB Ports:
  • Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
  • Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
• LAN: Intel Killer E5000 5Gbps
• Wi-Fi & Bluetooth: Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4

Additional Features

• LED Indicators: 4x EZ Debug LED, 1x EZ Digit Debug LED
• Back Panel Ports:
  • USB 10Gbps Type-A, 5G LAN, Wi-Fi/Bluetooth
  • HDMI, Thunderbolt 4 (Type-C), USB 10Gbps Type-C
  • Flash BIOS Button, Clear CMOS Button, S/PDIF-Out

Other Information

• OS Support: Windows 11 64-bit
• Form Factor: ATX (243.84mm x 304.8mm)
• Warranty: 3 Years

Box Contents:

• Quick Installation Guide
• 2x SATA Cables
• EZ M.2 Clips
• EZ Wi-Fi Antenna

The MSI MAG Z890 Tomahawk WiFi is a high-performance motherboard designed for gaming and advanced computing needs.
