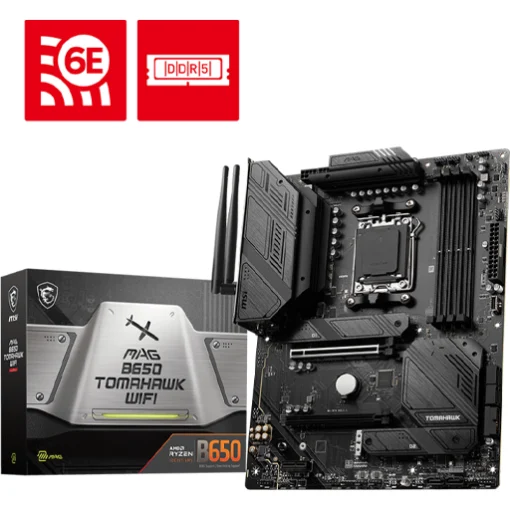

MSI MAG B650 TOMAHAWK WIFI

---

From the manufacturer

MSI: Engineered for Gamers & Creators

MSI stands as a trusted leader in gaming and esports, dedicating countless hours and resources to premier esports leagues and tier-1 gaming teams. By collaborating with the best in the industry, MSI seamlessly integrates competitive gaming expertise with cutting-edge technology, delivering products that push the boundaries of performance.

MAG B650 TOMAHAWK WIFI – Unite as One

The MAG B650 TOMAHAWK WIFI is a high-performance ATX gaming motherboard built around the latest AMD B650 chipset, offering premium hardware and exceptional value.

• Processor Support: AMD Ryzen 7000 Series (Zen 4, AM5)
• Power Design: 14 Duet Rail Power System with 80A SPS
• Memory: 4 x DDR5 DIMMs (Dual Channel, Up to 128GB, 6400MHz OC) with Memory Boost
• Expansion Slots: 2 x PCIe 4.0 x16 Slots
• Storage: 3 x Lightning Gen4 M.2 Slots (2 with Shield Frozr)
• Audio: 8-Channel (7.1) High-Performance Audio Boost 5
• Connectivity: USB 3.2 Gen 2×2 Type-C (20Gbps), 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.2
• Additional Features: Smart Cooling Technology for enhanced thermal performance

The MAG B650 TOMAHAWK WIFI blends reliability, innovation, and high-end gaming performance to take your system to the next level.

Supports AMD Ryzen 7000 Processors The MAG B650 TOMAHAWK WIFI motherboard supports AMD Ryzen 7000 processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD B650	14+2 Phase VRM with 80A Smart Power Stage With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings: 1. Digital PWM IC 2. 14-Phase Duet-Rail CPU Power (80A) 3. 2-Phase SOC Power 4. 1-Phase MISC Power	Integrated Cooling Features VRM Cooling: Features an extended heatsink and 7W/mK thermal pads. PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.	2 x Fortified PCI-e 4.0 x16 Slots MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 2 x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*) *Supports x16/x4

Description –

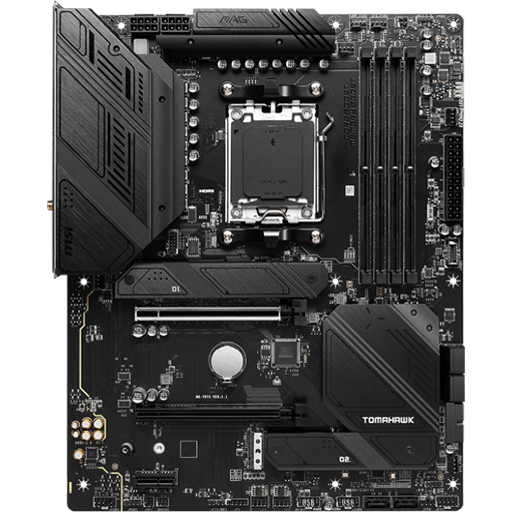

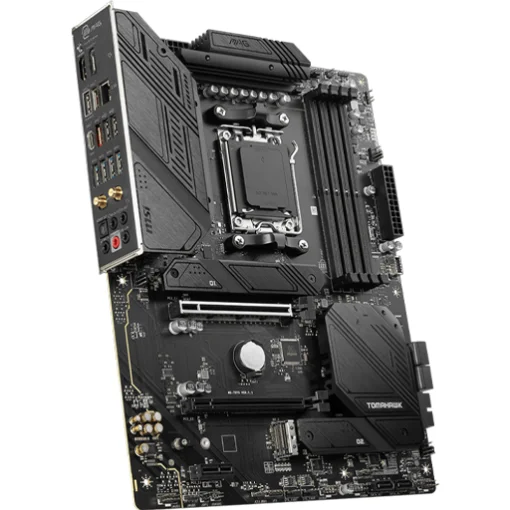

MSI MAG B650 TOMAHAWK WIFI Motherboard

The MSI MAG B650 TOMAHAWK WIFI is a powerful ATX motherboard designed for gamers and high-performance PC builders. Built on the AMD B650 chipset, it delivers cutting-edge features, robust power delivery, and next-gen connectivity for the latest AMD Ryzen™ 7000 Series processors.

Key Features & Specifications

Processor Support

• Compatible with AMD Ryzen™ 7000 Series Desktop Processors
• Socket: AM5

Memory

• Slots: 4x DDR5 DIMM
• Max Capacity: 128GB
• Supported Speeds:
  • OC: DDR5 6600+(OC), 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC)
  • JEDEC Standard: 4800MHz

Onboard Graphics (Requires CPU with Integrated GPU)

• Ports:
  • 1x HDMI™ 2.1 (HDR, max resolution 4K @ 60Hz)
  • 1x DisplayPort 1.4 (Max resolution 8K @ 60Hz)

Expansion Slots

• PCI-E Slots:
  • 2x PCIe x16 slots (Supports x16/x4)
  • 1x PCIe x1 slot
• PCIe Support:
  • PCI_E1: PCIe 4.0 x16 (from CPU)
  • PCI_E2: PCIe 4.0 x4 (from Chipset)
  • PCI_E3: PCIe 3.0 x1 (from Chipset)

Storage

• M.2 Slots:
  • 3x PCIe 4.0 x4 M.2 Slots (Supports 2280/2260 devices)
  • M.2_1 & M.2_2: Connected to CPU
  • M.2_3: Connected to Chipset
• SATA Ports: 6x SATA 6G
• RAID Support:
  • SATA: RAID 0, 1, 10 (SATA_A1_A2 do not support RAID)
  • M.2 NVMe: RAID 0, 1

USB Ports

• Rear Panel:
  • 2x USB 2.0
  • 4x USB 3.2 Gen1 Type-A
  • 3x USB 3.2 Gen2 Type-A
  • 1x USB 3.2 Gen2x2 Type-C (20Gbps)
• Front Panel:
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type-A
  • 1x USB 3.2 Gen2 Type-C

Networking

• LAN: Realtek® RTL8125B 2.5Gbps Ethernet
• Wireless & Bluetooth:
  • Wi-Fi: AMD Wi-Fi 6E (Pre-installed in M.2 Key-E slot)
  • Supports MU-MIMO TX/RX
  • Bands: 2.4GHz, 5GHz, 6GHz
  • Bluetooth: Bluetooth® 5.2

Audio

• Codec: Realtek® ALC4080
• Channels: 7.1-Channel High-Performance Audio
• Features: Optical S/PDIF Output, Up to 32-Bit/384 kHz Playback

Internal I/O Connectors

• Power:
  • 1x ATX_PWR Connector
  • 2x CPU_PWR Connectors
• Cooling & Headers:
  • 1x CPU Fan, 1x Pump Fan, 6x System Fan
  • 2x Front Panel (JFP), 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD), 1x Tuning Controller (JDASH)
  • 2x Addressable V2 RGB LED (JARGB_V2), 2x RGB LED (JRGB)
  • 1x TPM 2.0 Header
• USB:
  • 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen2 Type-C

LED Features

• 4x EZ Debug LED for easy troubleshooting

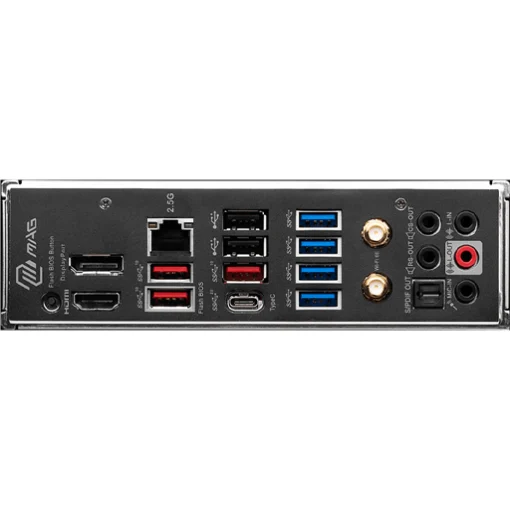

Back Panel I/O Ports

• 1x DisplayPort 1.4
• 1x HDMI™ 2.1 Port
• 1x 2.5G LAN Port
• 2x USB 2.0 Ports
• 4x USB 3.2 Gen1 5Gbps Type-A
• 3x USB 3.2 Gen2 10Gbps Type-A
• 1x USB 3.2 Gen2x2 20Gbps Type-C
• Wi-Fi/Bluetooth Antenna Connectors
• HD Audio Connectors
• Optical S/PDIF OUT
• Flash BIOS Button

Operating System Compatibility

• Supports Windows® 11 64-bit, Windows® 10 64-bit

Physical Dimensions

• Form Factor: ATX (243.84mm x 304.8mm)

The MSI MAG B650 TOMAHAWK WIFI is one of the best motherboards in its class, offering a balance of high performance, next-gen connectivity, and premium gaming features, making it an excellent choice for enthusiasts and gamers alike.
