Description –

Gigabyte B650M K Motherboard – High-Performance and Feature-Rich

CPU Compatibility:
Designed for AMD Socket AM5, it supports the latest AMD Ryzen™ 7000 Series processors (refer to the CPU Support List for detailed compatibility).

Chipset:
Powered by the AMD B650 chipset, ensuring optimized performance for gaming and content creation.

Memory Support:

• 4 x DDR5 DIMM slots, supporting up to 192 GB (48 GB per DIMM).
• Compatible with DDR5 speeds up to 6400(OC), 6200(OC), and 4800 MT/s.
• Supports AMD EXPO™ and XMP memory profiles for easy overclocking.

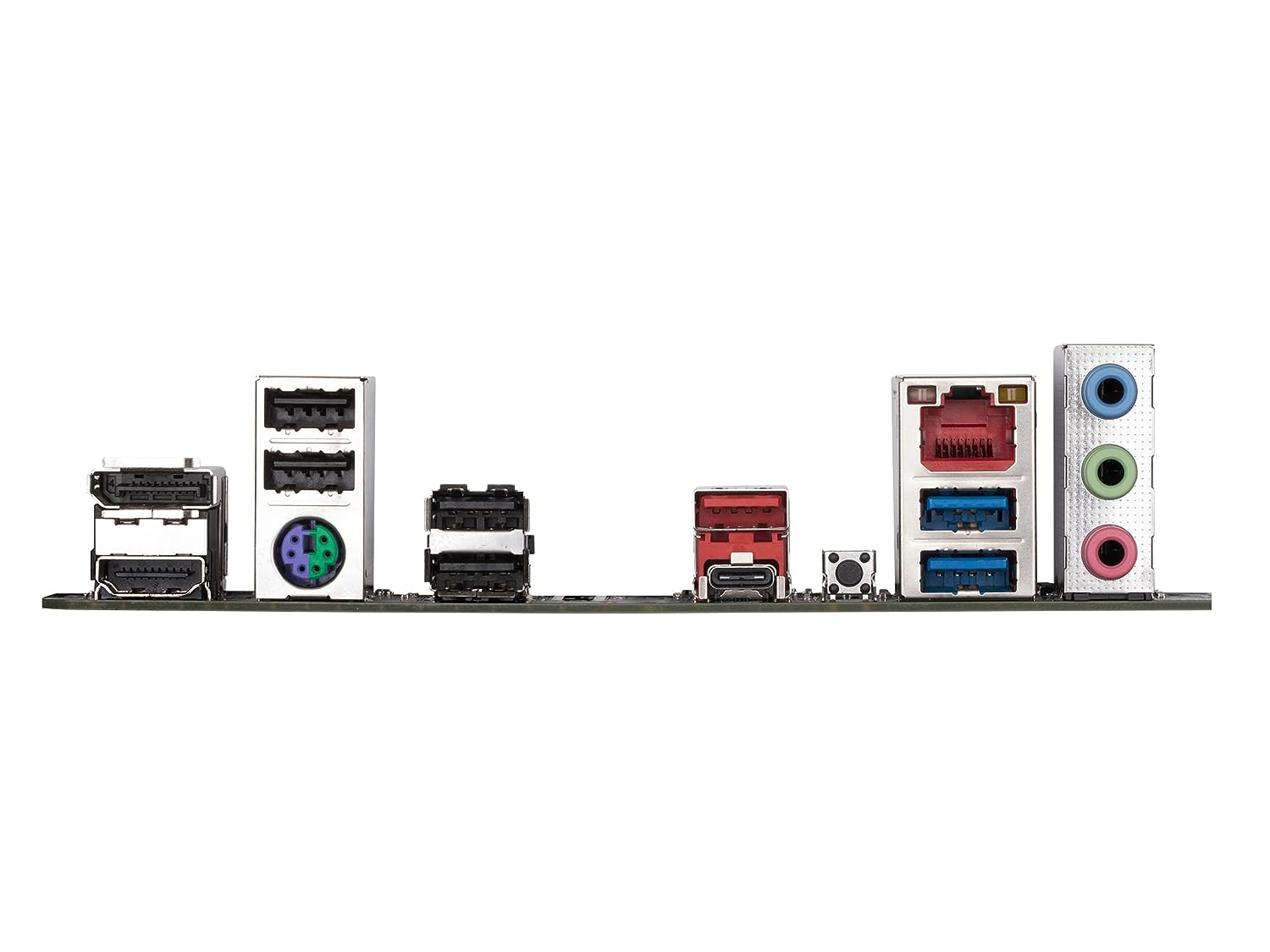

Onboard Graphics:

• 1 x DisplayPort (max resolution: 3840×2160@144 Hz).
• 1 x HDMI port (max resolution: 4096×2160@60 Hz).

Audio:

• Integrated Realtek® Audio CODEC for high-definition sound.
• Supports 2/4/5.1/7.1 channel audio configurations.

Networking:

• Realtek® 2.5GbE LAN for high-speed wired connectivity.

Expansion Slots:

• 1 x PCI Express x16 slot (PCIe 4.0).
• 1 x PCI Express x1 slot (PCIe 3.0).

Storage Interfaces:

• 2 x M.2 connectors (PCIe 4.0 SSD support).
• 4 x SATA 6Gb/s connectors with RAID 0, RAID 1, and RAID 10 support.

USB Connectivity:

• Multiple USB ports, including USB Type-C® with USB 3.2 Gen 2 for fast data transfer.

Form Factor:

• Micro ATX (24.4cm x 24.4cm), ideal for compact PC builds.

Operating System Compatibility:

• Supports Windows 10 and 11 (64-bit).

Warranty:

• Covered by a 3-year warranty for reliability and peace of mind.

The Gigabyte B650M K is a top-tier motherboard, offering excellent performance, expandability, and future-ready features for gaming, productivity, and high-speed computing.
