Description –

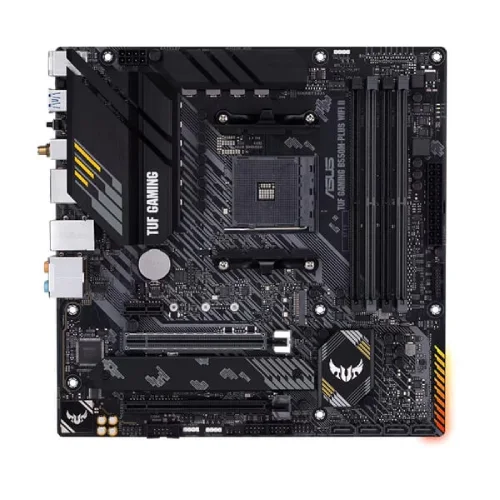

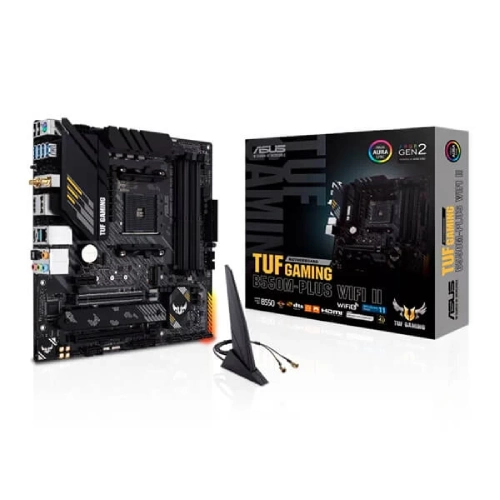

ASUS TUF Gaming B550M-Plus WiFi II Motherboard

Processor Support:

• Compatible with AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors.

Chipset:

• AMD B550 Chipset

Memory:

• 4 x DIMM slots, supporting up to 128GB DDR4 RAM
• Supports speeds up to 4866 MHz (OC)
• Dual-Channel Memory Architecture
• ECC and Non-ECC memory support (varies by CPU)

Graphics Outputs:

• 1 x DisplayPort (supports 4K@60Hz)
• 1 x HDMI® port (supports 4K@60Hz)

Expansion Slots:

• 1 x PCIe 4.0 x16 slot (x16 mode for Ryzen 5000/3000 processors)
• 1 x PCIe 3.0 x16 slot (x16 mode for Ryzen 5000 G/4000 G processors)
• 1 x PCIe 3.0 x16 slot (x4 mode)
• 1 x PCIe 3.0 x1 slot

Storage:

• 2 x M.2 slots (PCIe/SATA support)
• 4 x SATA 6Gb/s ports with RAID support

Networking:

• Realtek 2.5Gb Ethernet with TUF LANGuard for enhanced protection

Wireless & Bluetooth:

• Wi-Fi 6 (2×2 802.11 a/b/g/n/ac/ax)
• Bluetooth 5.2

USB Ports:
Rear Panel:

• 2 x USB 3.2 Gen 2 (1 x Type-A, 1 x Type-C)
• 4 x USB 3.2 Gen 1 (Type-A)
• 2 x USB 2.0 (Type-A)
  Front Panel:
• 6 USB ports (various configurations)

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Premium audio features for high-quality sound

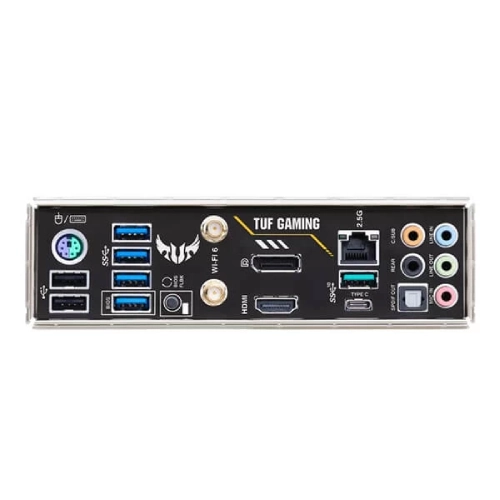

Back Panel I/O:

• 2 x USB 3.2 Gen 2 (1 x Type-A, 1 x Type-C)
• 4 x USB 3.2 Gen 1
• 2 x USB 2.0
• DisplayPort, HDMI®
• 5 x Audio jacks
• BIOS FlashBack™ button
• PS/2 port

Special Features:

• ASUS TUF Protection: DIGI+ VRM, ESD Guards, SafeSlot
• ASUS Q-Design for easy installation
• Aura Sync for customizable RGB lighting

BIOS:

• 256Mb Flash ROM, UEFI AMI BIOS

Form Factor:

• MicroATX (24.4 cm x 24.4 cm)

Warranty:

• 3 Years

The ASUS TUF Gaming B550M-Plus WiFi II Motherboard is an excellent choice for gamers and PC enthusiasts, offering superior performance, durability, and next-gen connectivity.
