Description –

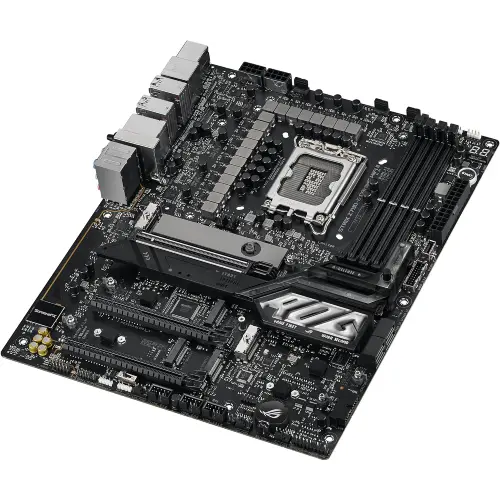

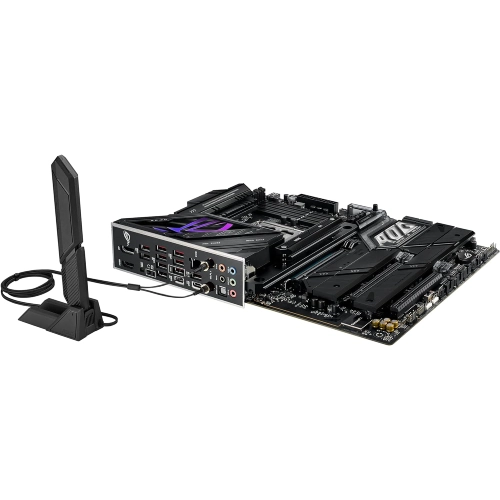

ASUS ROG Strix Z790-E Gaming WiFi II Motherboard

Model: ROG STRIX Z790-E GAMING WIFI II

CPU Support:

• Intel® Socket LGA1700
• Compatible with 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
• Supports Intel® Turbo Boost Technology 2.0 & 3.0

Chipset:

• Intel® Z790 Chipset

Memory:

• 4 x DIMM slots, up to 192GB DDR5
• Supports DDR5 8000+(OC) to 4800
• Non-ECC, Un-buffered, Dual Channel
• Supports XMP & DIMM Flex

Graphics:

• 1 x DisplayPort (8K@60Hz)
• 1 x HDMI™ (4K@60Hz)

Expansion Slots:

• 1 x PCIe 5.0 x16
• 2 x PCIe 4.0 x16

Storage:

• 5 x M.2 slots (PCIe 5.0 & 4.0)
• 4 x SATA 6Gb/s ports

Networking:

• Ethernet: Intel® 2.5Gb Ethernet
• Wireless: Intel® Wi-Fi 7 (up to 2.4Gbps)
• Bluetooth: Bluetooth® v5.4

USB Ports:

• Rear Panel:
  • 1 x USB 20Gbps Type-C
  • 11 x USB 10Gbps
• Front Panel:
  • 1 x USB 20Gbps
  • Additional USB headers

Audio:

• ROG SupremeFX 7.1 Surround Sound
• ALC4080 Audio Codec

Back I/O Ports:

• 1 x USB 20Gbps Type-C
• 11 x USB 10Gbps
• 1 x DisplayPort
• 1 x HDMI
• 5 x Audio Jacks
• 1 x Intel® 2.5Gb Ethernet

Special Features:

• Extreme OC Kit
• AURA Sync RGB
• BIOS FlashBack™
• SafeSlot for PCIe durability

Operating System Support:

• Windows® 10/11 (64-bit)

Form Factor:

• ATX (12″ x 9.6″)

Warranty:

• 3 Years

The ASUS ROG Strix Z790-E Gaming WiFi II is a high-performance gaming motherboard, delivering top-tier connectivity, extreme overclocking capabilities, and next-gen PCIe & WiFi technologies for ultimate gaming and productivity.

.
