Description –

Asus ROG Strix B760-I Gaming WiFi Motherboard

CPU Support:

• Intel® Socket LGA1700
• Compatible with 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors
• Supports Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0

Chipset:

• Intel® B760 Chipset

Memory:

• 2 x DIMM slots, supporting up to 64GB DDR5
• Overclocking support up to 7600 MHz
• Dual-Channel Memory Architecture
• Intel Extreme Memory Profile (XMP) support

Graphics:

• 1 x DisplayPort
• 1 x HDMI (Supports 4K@60Hz)

Expansion Slots & Storage:

• 1 x PCIe 5.0 x16 slot
• 2 x M.2 slots (PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports (RAID 0/1/5/10 support)

Networking:

• 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard
• Wi-Fi 6E (2×2) and Bluetooth® v5.3

USB Ports:

• Rear I/O:
  • 1 x USB 3.2 Gen 2×2 Type-C
  • 4 x USB 3.2 Gen 1
  • 3 x USB 2.0
• Front Panel:
  • 5 USB ports (including USB Type-C)

Audio:

• ROG SupremeFX 7.1-Channel HD Audio CODEC S1220A
• High-fidelity audio with impedance sensing

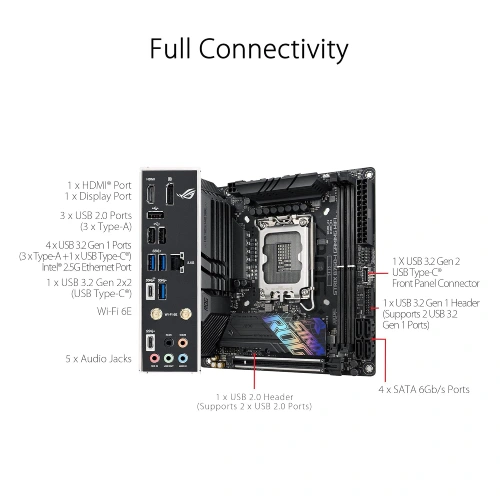

Back Panel I/O Ports:

• 1 x USB 3.2 Gen 2×2 Type-C
• 4 x USB 3.2 Gen 1
• 3 x USB 2.0
• 1 x HDMI, 1 x DisplayPort
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet
• 5 x Audio jacks

Internal I/O Connectors:

• Multiple fan headers and power connectors
• USB headers for additional connectivity
• 1 x Addressable Gen 2 RGB header
• 1 x Aura RGB header

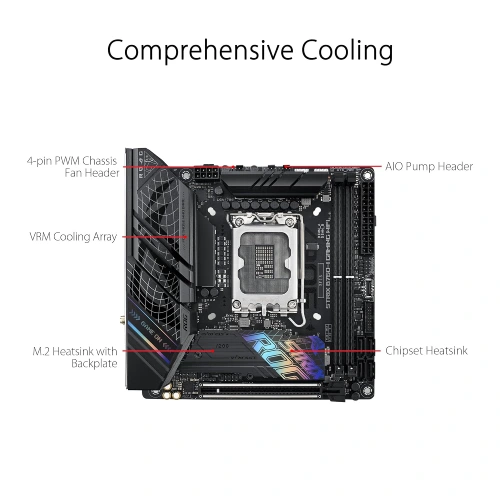

Special Features:

• Extreme Engine Digi+ power design
• M.2 heatsink backplate for efficient cooling
• ASUS EZ DIY features (SafeSlot, CPU Socket lever protector, etc.)

Software Features:

• ROG Exclusive & ASUS Exclusive software for performance tuning and customization
• UEFI BIOS with ASUS EZ DIY tools

Form Factor:

• Mini-ITX (6.7 x 6.7 inches)

Operating System Compatibility:

• Windows® 11 64-bit, Windows® 10 64-bit

Warranty:

• 3 Years

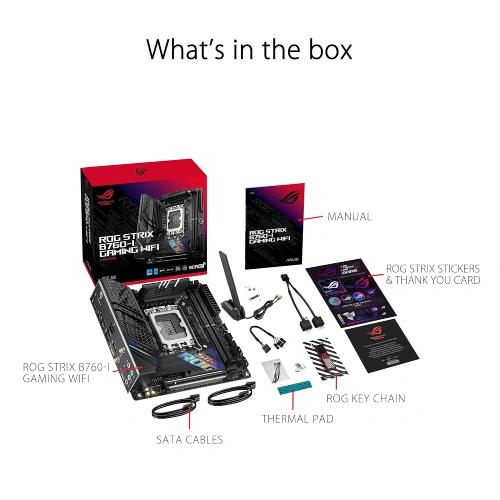

Accessories Included:

• SATA cables
• ROG USB splitter cable
• Wi-Fi antennas
• User manual
• Additional accessories

🔹 The Asus ROG Strix B760-I Gaming WiFi Motherboard is a powerful and compact choice for high-performance gaming and computing needs!
